Wednesday, September 20, 2006

Wine cabinet plan/progress

So here is an idea of how the wine cabinet will look.

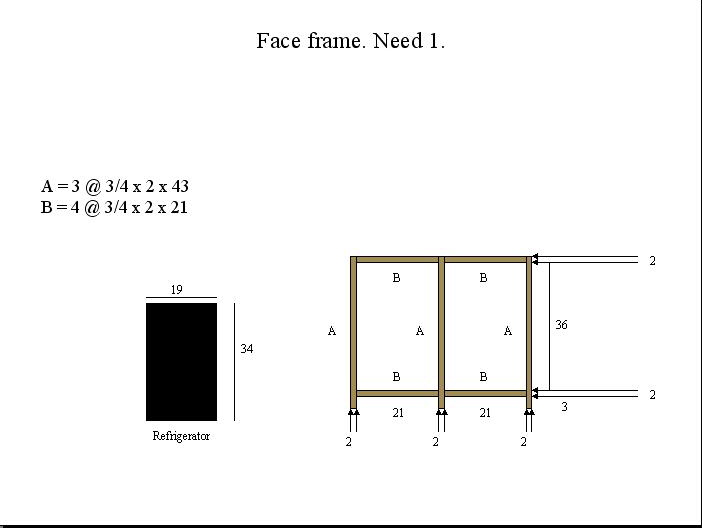

Face frame


Side and center divider frames.


Door (for Left side)


Top


Alternatively, I may end up filling in the top of the cabinet with wine corks and topping with a sheet of glass instead of tiling. Since it is for wine that would be a neat touch and very much in line with the wine cork trivets that my uncle makes.

All of the A, B, C, and D parts have been assembled into frames using pocket hole joinery. Never done that before but it makes very strong connections.

Here are all the frame parts. The four stacks on the left are rails (horizontals) and have been pre-drilled for pocket screws...see the example? The three stacks on the right are the stiles (verticals).


Here I getting ready to assemble the first frame joint.


That was done to every joint and here is the completed face frame.


And the 3 center and side frames (they are stacked up).


Finally, to show an idea of size I leaned the parts together. The center frame is sitting on top to add a little stability so I could shoot the photo. This cabinet is about one hand shy of 4 feet tall. Looks bigger in real life than in the drawings!! I have put in about 11 woodworking hours to get to this point.

3 Comments:

At 7:40 PM, September 20, 2006, Anonymous Anonymous said...

That is a large wine rack. What will it take to fill it, $300.00? For me, I only buy one bottle at a time, it is always fresh. Jerry has a wine rack at his place and in the seven years we have been going there it is the same wine in the rack. When we go there he always buys a fresh bottle and we have that. I am sure his bottles have turned to vinigar by now.


At 10:28 PM, September 20, 2006, Blogger Tim B. said...

Well, if you recall, they have a wine chilling refrigerator. That will go into the right side since its door swings from left to right. The left side will have a door that swings from right to left and will have shelves to hold wine glasses and perhaps a bottle of red or two.

There wasn't enough vertical space below the wall light switch so I left drawers out of the design. But I will perhaps make a box to sit on top which will hold napkins, coasters, cork removers, corks, etc.

Did you know that I built that wine rack for Jerry? He wanted to hold a pretty large number of bottles, so that's an awful lot of vinegar.


At 8:53 AM, September 21, 2006, Blogger paulette said...

Is THAT where they get Red Wine Vinegar?

Tim you are amazing.
